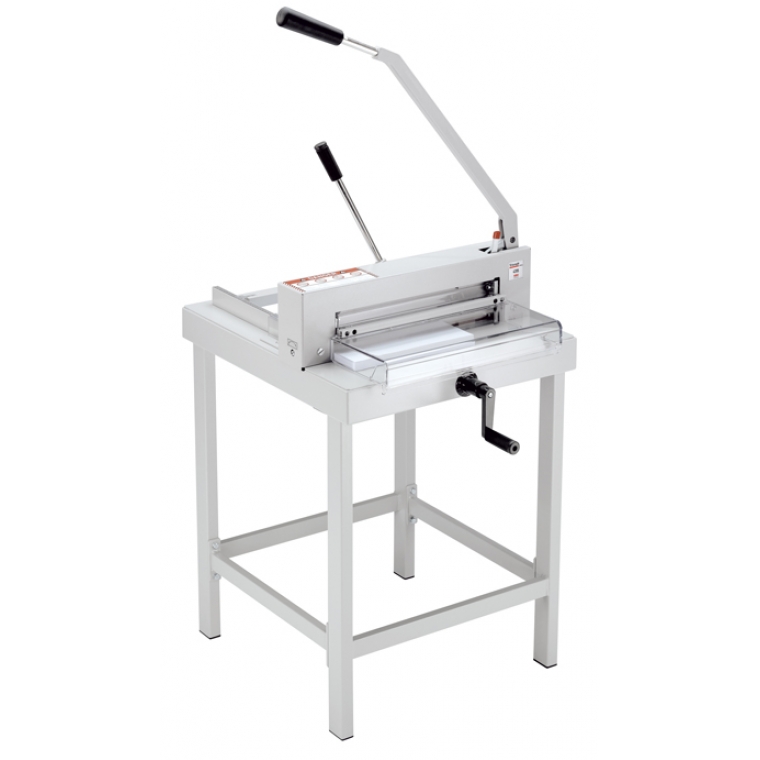

Triumph 4305

Not Applicable
Cutters
Manufactured by:
MBM
SCS® (Safety Cutting System) features: hinged, transparent safety guard on front table (locks automatically while cutting); transparent safety cover on rear table; safety catch (locks blade lever in up position); blade change from front without removing machine covers; blade changing device covers cutting edge of blade; blade depth adjustment from outside of machine; cutting stick can be turned or changed from outside of machine

Highlights

  • Cutting Width: 16 7/8"
  • Cutting Height: 1 1/2"
  • Narrow Cut: 1 5/16"
  • Cutting Length Behind Blade: 17"
  • Table Length in Front of Blade: 9"
compact size | Soligen steel blade | solid steel blade carrier and adjustable blade guides | extra large cut lever requires minimal effort | patented, lever-activated, fast-action clamp | side guide with measuring scale | spindle-guided back gauge with calibrated crank and measuring scale | all-metal construction | optional stand (shown) or cabinet | UL and C UL approved Dimensions (D x W x H): 34 5/8" x 34 3/4" x 15 3/4" (43" H with stand, 44" with cabinet) Shipping weight: 109 lbs. (135 lbs. with stand, 204 lbs. with cabinet)
