Triumph 4315

Not Applicable
Cutters
Manufactured by:
MBM

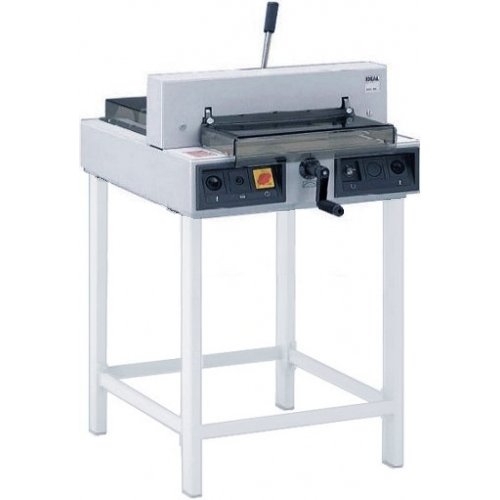

SEMI-AUTOMATIC TABLETOP CUTTER WITH DIGITAL DISPLAY

Highlights

  • Cutting Width: 16 7/8"
  • Cutting Height: 1 1/2"
  • Narrow Cut: 1 3/8"
  • Cutting Length Behind Blade: 17"
  • Table Length in Front of Blade: 9"
  • Motor: 3/5 hp
  • Power Supply: 115 V, 60 Hz
SCS® (Safety Cutting System) package: hinged, transparent electronically controlled front safety guard; transparent safety cover on rear table; main switch and safety lock with key; electronically controlled, true two-hand operation; 24 volt controls (low voltage); patented IDEAL safety drive; automatic blade return from every position; disc brake for instant blade stop; blade and cutting stick can be changed without removing covers; blade changing device covers cutting edge of blade; blade depth adjustment from outside of machine electric blade drive | Soligen steel blade | solid steel blade carrier and adjustable blade guides | patented, lever-activated, fast-action clamp | precision side guide | spindle-guided back gauge with calibrated crank | digital display for precise back gauge positioning | bright, LED optical cutting line | all-metal construction | optional stand (shown) or cabinet | UL and C UL approved Dimensions (D x W x H): 34 5/8" x 25 1/4" x 14 1/8" (41 1/2" H with stand, 42 1/2" H with cabinet) Shipping weight: 196 lbs. (222 lbs. with stand, 291 lbs. with cabinet)
