Triumph 4705

Not Applicable
Cutters
Manufactured by:
MBM
SCS® (Safety Cutting System) features: hinged, transparent safety guard on front table (locks automatically while cutting); transparent safety cover on rear table; safety catch (locks blade lever in up position); blade change from front without removing machine covers; blade changing device covers cutting edge of blade; blade depth adjustment from outside of machine; cutting stick can be turned or changed from outside of machine

Highlights

  • Cutting Width: 18 3/4"
  • Cutting Height: 2 3/4"
  • Narrow Cut: 1 3/16"
  • Cutting Length Behind Blade: 18 1/4"
  • Table Length in Front of Blade: 8 1/8"

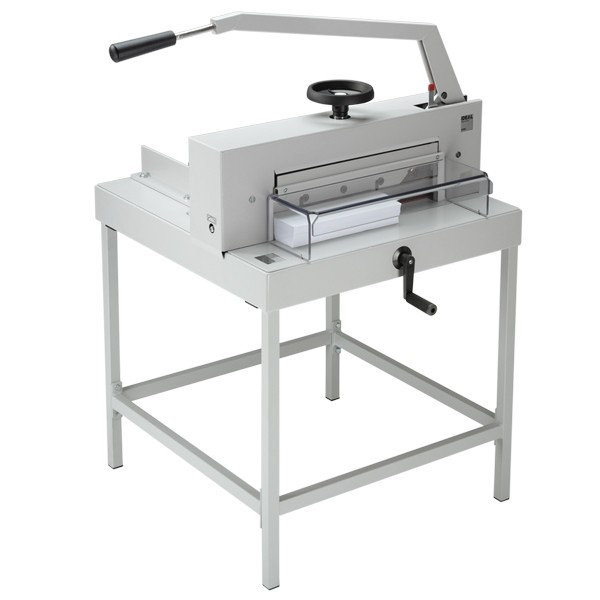

Soligen steel blade | solid steel blade carrier and adjustable blade guides | extra large cut lever requires minimal effort | spindle clamping system applies even pressure along entire cutting width | spindle-guided back gauge with calibrated crank | precision back gauge measuring scale on front table | all-metal construction | optional stand (shown) | UL and C UL approved Dimensions (D x W x H): 34 3/8" x 40 1/2" x 20" (50" H with stand) Shipping weight: 297 lbs. (320 lbs. with stand)
