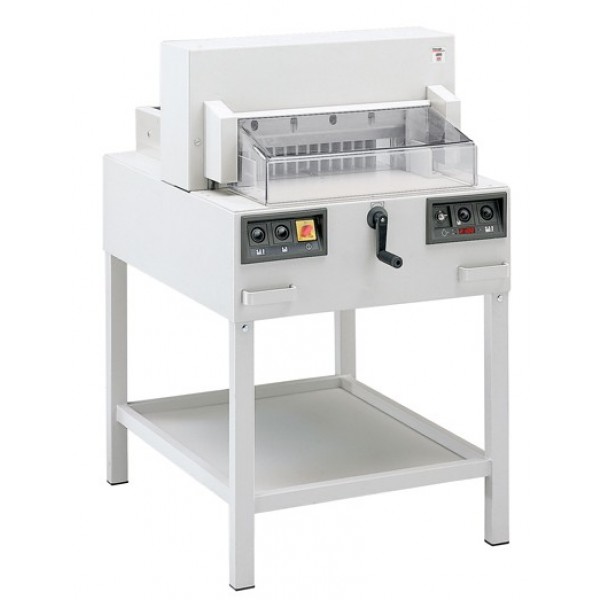

Triumph 4850 D

Not Applicable
Cutters
Manufactured by:
MBM
AUTOMATIC CUTTER WITH DIGITAL DISPLAY

Highlights

  • Cutting Width: 18 7/8"
  • Cutting Height: 3"
  • Narrow Cut: 1 1/4"
  • Cutting Length Behind Blade: 17 11/16"
  • Table Length in Front of Blade: 13 5/8"
  • Motor: 2 hp
  • Power Supply: 115 V, 60 Hz
SCS® (Safety Cutting System) package: hinged, transparent electronically controlled front safety guard; transparent safety cover on rear table; main switch and safety lock with key; electronically controlled, true two-hand operation; 24 volt controls (low voltage); patented IDEAL safety drive; automatic blade return from every position; automatic clamp return from every position; disc brake for instant blade stop; blade and cutting stick can be changed without removing covers; blade changing device covers cutting edge of blade; blade depth adjustment from outside of machine electric blade and clamp drive | Solingen steel blade | solid steel blade carrier and adjustable blade guides | automatic clamp is guided on both sides to apply even pressure along entire cutting width (can be lowered or raised independently from blade) | dual side guides on front and rear tables | spindle-guided back gauge with calibrated crank, narrow separations, and plastic gliders | digital display for precise back gauge positioning | bright, LED optical cutting line | all-metal construction | stand with storage shelf | UL and C UL approved Dimensions (D x W x H): 38 1/4" x 29 3/4" x 48 1/2" Shipping weight: 556 lbs.
