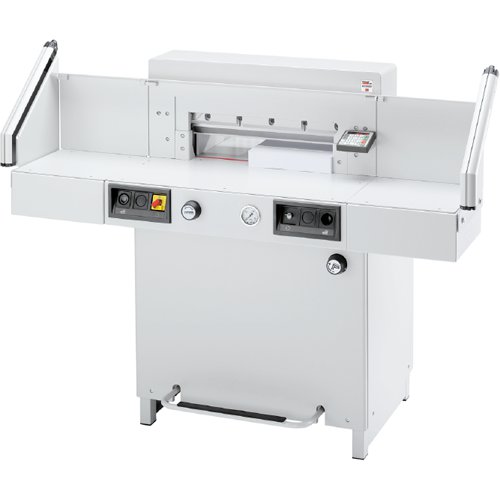

Triumph 5222 Digicut

SCS® (Safety Cutting System) package: front safety light beams; transparent safety cover on rear table; main switch and safety lock with key; electronically controlled, true two-hand operation; 24 volt controls (low voltage); patented IDEAL safety drive; automatic blade return from every position; automatic clamp return from every position; disc brake for instant blade stop; blade and cutting stick can be changed without removing covers; blade changing device covers cutting edge of blade; blade depth adjustment from outside of machine high storage capacity, programmable EP back gauge control module with 10 button keypad and LED display stores 99 programs (up to 99 steps each) and frequently used measurements | up to 9 repeat cuts can be integrated into a program in a single step | digital measurement readout in cm or inches (accurate to 1/10 mm or 1/100 inch) | control module features repeat cut and eject functions | "set" function key for reference measurement | self-diagnostic system with error indication on display | electric blade and back gauge drive | Solingen steel blade | precision swing-cut blade movement | solid steel blade carrier and adjustable blade guides | hydraulic clamp drive | clamp is guided on both sides to apply even pressure along entire cutting width and is fully adjustable between 440 and 2,420 psi (ideal for digital printing) | false clamp and foot pedal for pre-clamping | dual side guides on front and rear tables | electric, spindle-guided back gauge with narrow separations and plastic gliders | electronic hand wheel with variable speed control for manual back gauge setting | bright, LED optical cutting line | standard side tables extend work area | all-metal construction | UL and C UL approved Dimensions (D x W x H): 43" x 65" x 51 1/2" Shipping weight: 900 lbs.
